Premium Panoramic Padel Court (Standard 20x10m)

Elevate your sports venue with PEDI’s Standard Panoramic Padel Court. Designed to offer the perfect balance between high-end aesthetics and structural integrity, this 20m × 10m court eliminates vertical steel pillars between the back glass panels, providing spectators and cameras with a stunning, unobstructed view. Manufactured in our 20,000㎡ facility, it combines heavy-duty Q235 hot-galvanized steel with CE-certified 12mm explosion-proof tempered glass. Deliver a VIP, tournament-ready experience at competitive factory-direct pricing.

Get a Quote

Top view of a panoramic padel tennis court

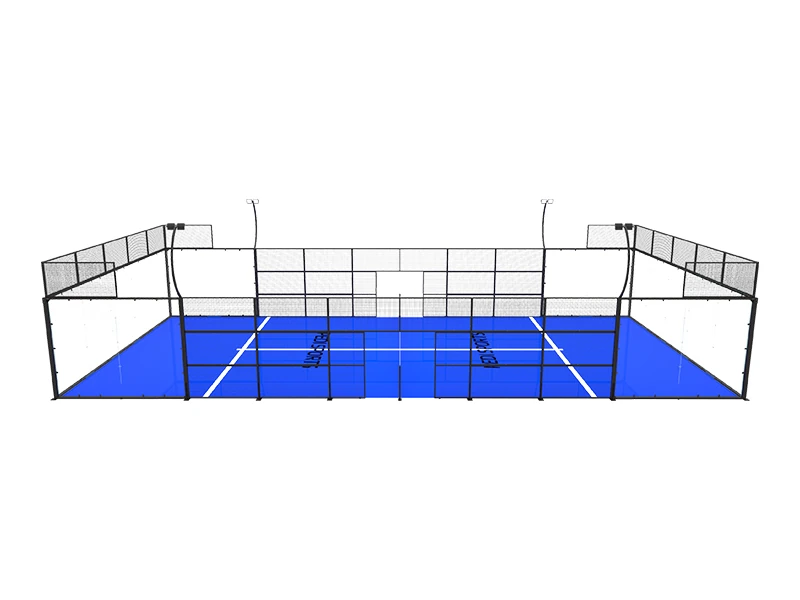

Side view of panoramic padel tennis court

Technical Specifications of the Panoramic Court

Component / Feature	Specification Details
Model	PC-001
Court Dimensions	20m × 10m × 4m (Standard Doubles Size)
Visibility Concept	Panoramic back walls (No vertical pillars between rear glass)
Structural Frame	Q235 Galvanized Steel (Reinforced corner pillars for stability)
Tempered Glass	1995mm × 2995mm per panel, 12mm thickness mandatory (CE Certified)
Metal Mesh	50mm × 50mm × 4mm electro-welded wire mesh (Anti-injury design)
Surface Turf	12mm Texturized (High-density, Anti-UV)
Steel Treatment	Hot-dip galvanizing + Zinc-Rich Primer + Electrostatic Powder Coating
Lighting System	8pcs x 200W/400W IP65 Waterproof LED Lights (Anti-glare lenses)

What makes the Panoramic Court a Top Seller?

The Panoramic Padel Court is the most popular choice for commercial padel clubs worldwide.

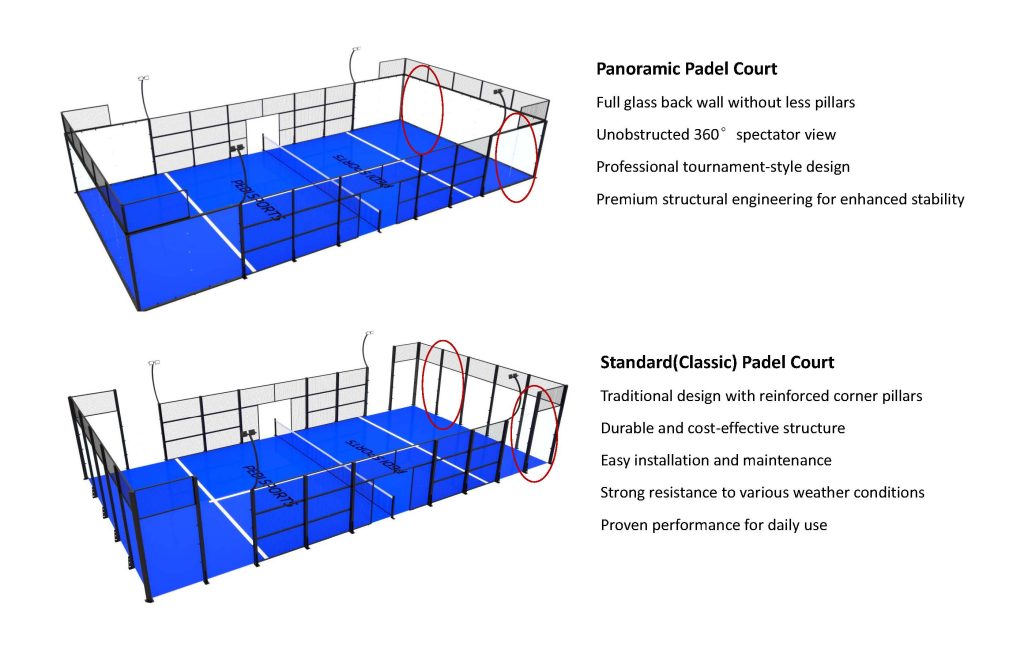

Unlike the “Classic Court” which uses metal pillars to separate every piece of glass, the Panoramic design uses structural glass-to-glass connections at the back walls. However, it retains the robust steel pillars at the four corners of the court.

This smart engineering provides clubs with the breathtaking “glass aquarium” look required for VIP matches and TV broadcasting. While delivering the same elite visual impact as a “Super Panoramic” model, this design is engineered for a significantly more streamlined and efficient installation process. It represents the ultimate sweet spot for owners seeking premium club positioning with reduced setup complexity, ensuring faster project completion and maximum ROI.

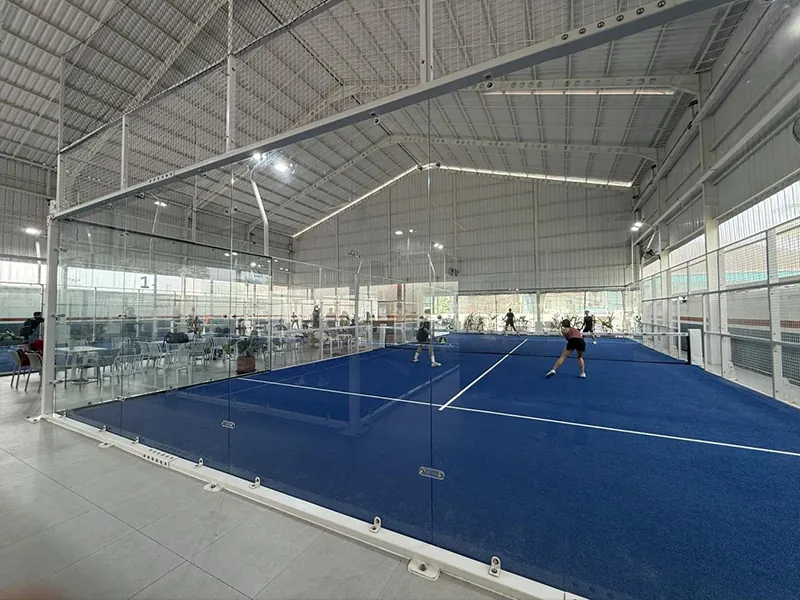

premium panoramic padel court (standard 20x10m)

Precision Engineering: Safety Meets Elegance

Removing structural pillars at the back means the glass and the top/bottom steel tracks must bear the impact of professional play. As a manufacturer with 15+ years of expertise, we guarantee absolute safety:

Mandatory 12mm CE Glass: We exclusively use 12mm impact-resistant tempered glass for our panoramic courts. This thick, CE-certified glass acts as a load-bearing wall, ensuring it won’t flex or shatter when players crash into it.

Thickened Steel Frames: The Q235 steel tracks securing the glass at the top and bottom are heavily reinforced and laser-cut via CNC machines to ensure zero-tolerance precision.

Weather-Proof Longevity: Every steel component undergoes strict hot-dip galvanizing and double powder coating, offering exceptional rust resistance even in humid coastal areas.

Optional Electrophoresis (E-Coating) Upgrade: For clients seeking the ultimate surface finish and durability, we offer an optional Electrophoretic (E-coating) treatment. This advanced process results in a significantly smoother steel surface while increasing rust and moisture resistance by 100%. Choosing E-coating can extend the court’s operational lifespan by an additional 3-5 years, making it the ideal solution for premium clubs and high-humidity coastal locations.

Export Packaging & Modular Installation

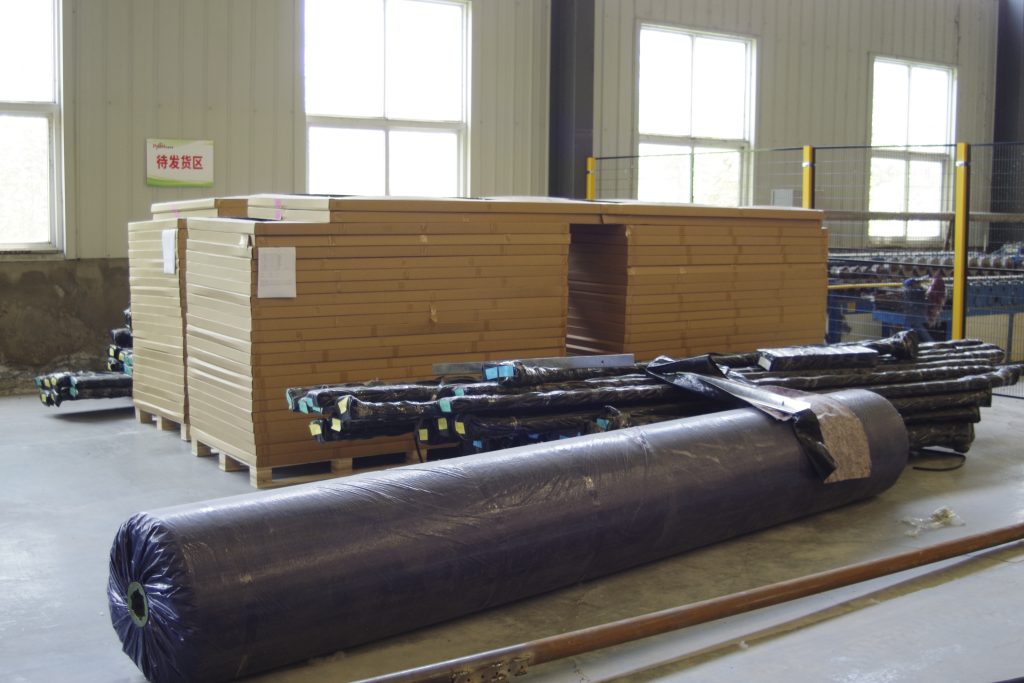

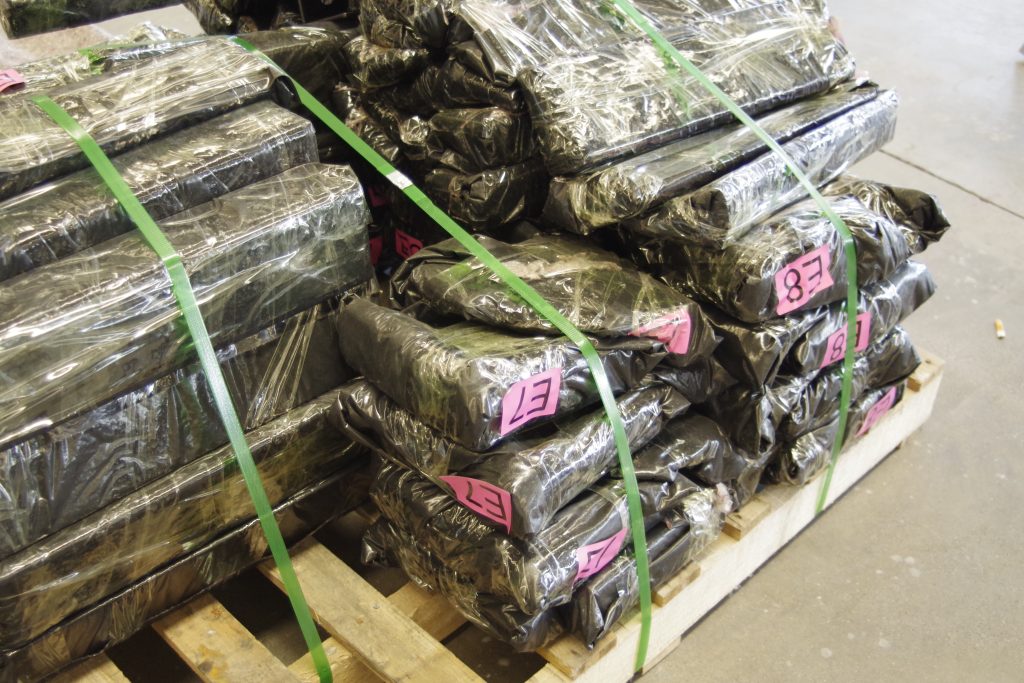

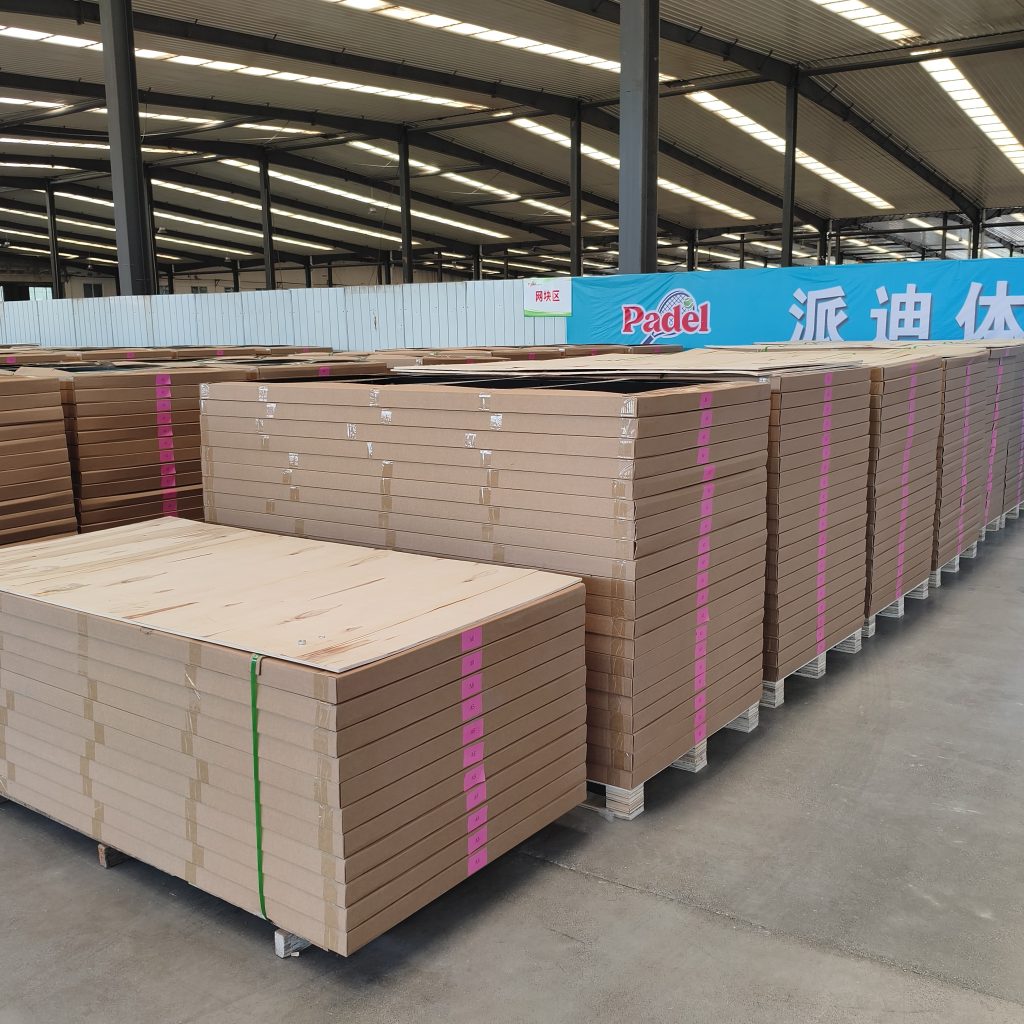

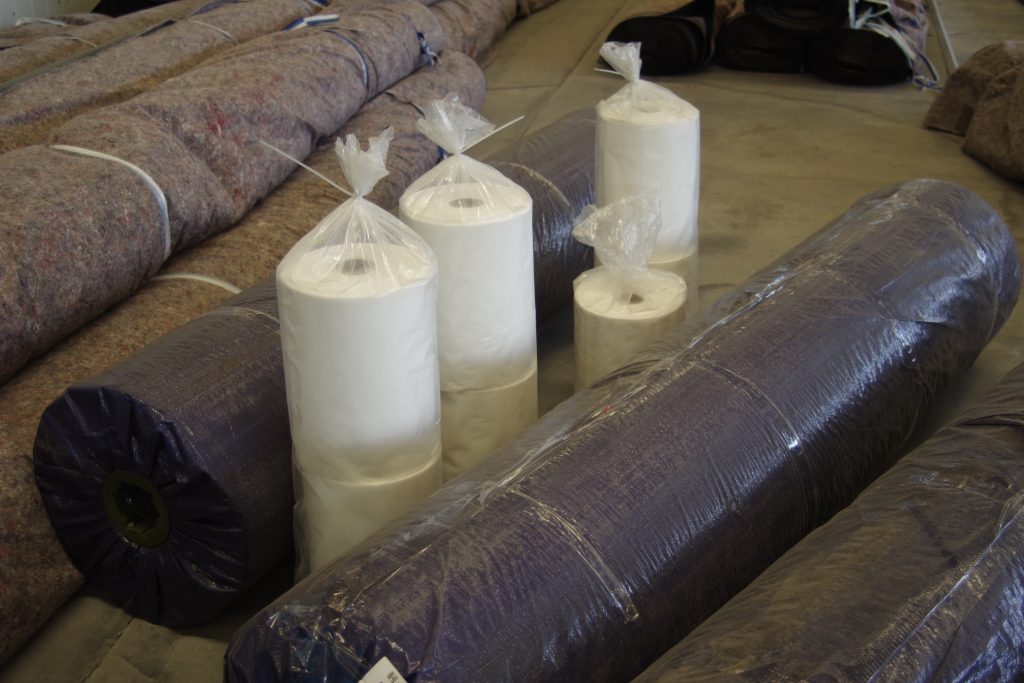

Secure Packaging & Near-Zero Breakage: Transporting massive 12mm panoramic glass panels requires specialized protection. We utilize customized wooden crates with segmented packaging to ensure each panel is safely isolated. Our mature container-loading expertise allows us to minimize transport damage to nearly zero.

Extra Protection for Peace of Mind: To further safeguard your project, we provide 1-2 complimentary spare glass panels with every shipment. This ensures that even in the event of an unforeseen accident during transit or local installation, your project timeline remains on track without delays.

Bolt-On Assembly: The entire panoramic structure is highly modular. With our precision-drilled countersunk holes and 304 stainless steel fasteners, local installation teams can assemble the court smoothly with zero on-site welding. We provide comprehensive 3D manuals and remote support.

Frequently Asked Questions (FAQ)

Q1: Is the Panoramic Court suitable for extreme outdoor weather?

A: Yes. The combination of 12mm heavy-duty tempered glass and our reinforced corner pillars makes the standard panoramic court exceptionally stable. It is engineered to handle extreme wind loads and is capable of withstanding up to Grade 13 typhoons, as well as heavy impacts. This superior structural integrity makes it the perfect choice for both indoor arenas and high-exposure outdoor commercial sports parks in coastal or storm-prone regions.

Q2: Can I customize the court colors?

A: Absolutely. As a direct factory, we offer full customization. You can select custom RAL colors for the Q235 steel frame (e.g., Matte Black, Padel Blue, or Forest Green) and match it with our high-density texturized turf.

Q3: How many Panoramic Courts can fit in a 40HQ container?

A: Depending on the turf and exact accessories selected, we can expertly load multiple complete 20x10m panoramic courts into a single 40HQ container, significantly reducing your international sea freight costs per unit. Contact us for a precise loading plan!
